TITO90

Lighting Effects

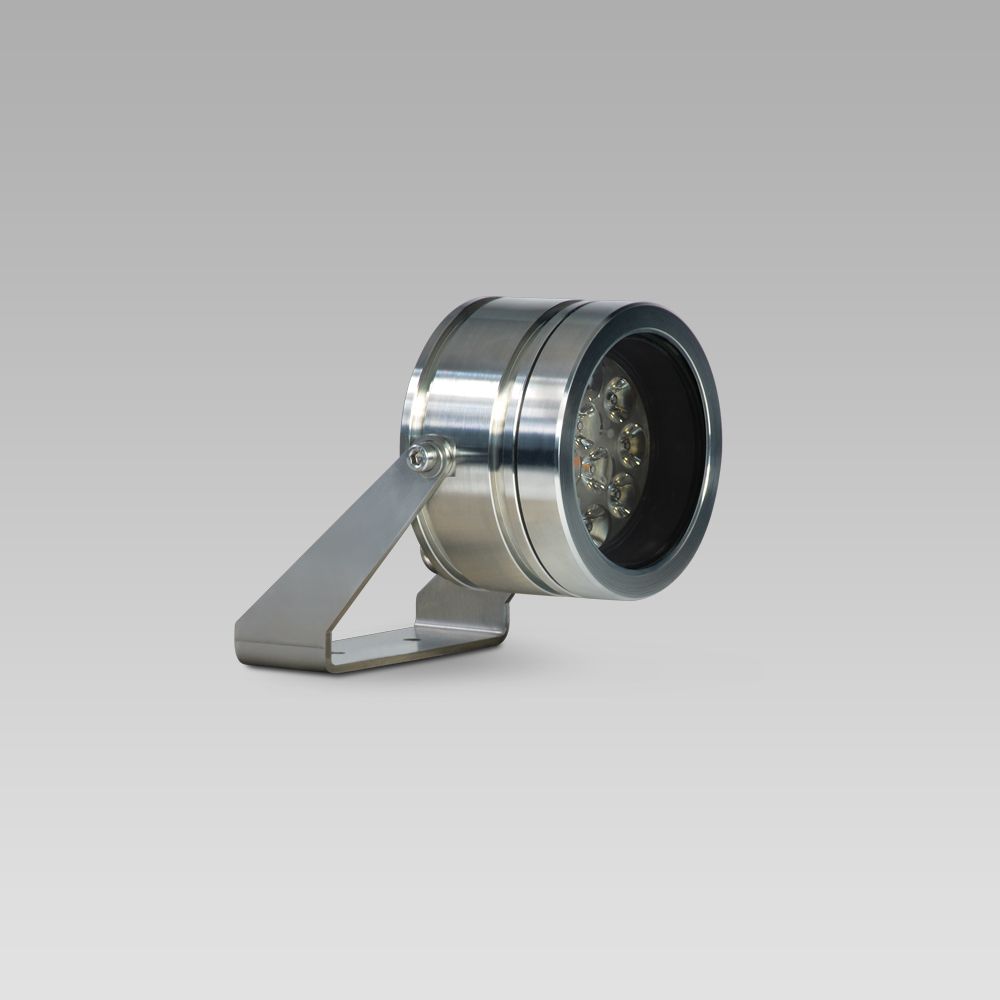

Floodlights for outdoor lighting TITO: excellent performance in a compact, essential and sturdy design. Totally adjustable and equipped with a wide range of optics, TITO floodlights are perfect for enhancing architectures and greeneries with accent lighting and decorative effects.

Small-size, essential design, that integrates seamlessly into any environment
High resistance: AISI 316L stainless steel body and trim guarantee maximum protection degree (IP68), even with high humidity; submersible up to 1 m depth
Versatility: total adjustability and wide range of optics available: from narrow beams, ideal to enhance architectural and natural details, to wall washer optics for accent lighting of cornices, facades, ashlar finishing, entranceways. RGBW version can create scenografic light effects
Available with Bluetooth Low Energy technology for remote control
Application: illumination of parks and gardens, buildings and monuments, hotels, wellness centres, health resorts, decorative lighting, spas, fountains and tubs.

tito90

Versions

Standard

All

RESET

LED Color

3000K

4000K

RGBW

Color

Stainless Steel - 30

Wiring

REM-D

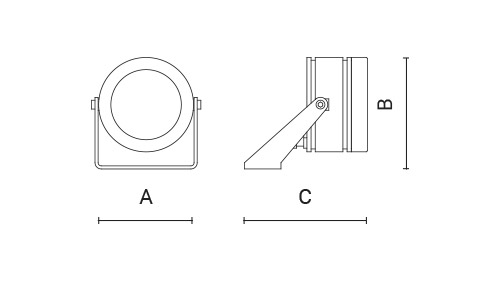

Code	Optics	Watt	Lumen	CCT	CRI	Wiring	A	B	C
0688006C-830-30	narrow 14°	12W	1550lm	3000K	80	REM-D	91mm	108mm	118mm
0688006C-840-30	narrow 14°	12W	1650lm	4000K	80	REM-D	91mm	108mm	118mm
0688008C-30	narrow 14°	12W		RGBW		REM-D	91mm	108mm	118mm
0688000C-830-30	flood 30°	12W	1400lm	3000K	80	REM-D	91mm	108mm	118mm
0688000C-840-30	flood 30°	12W	1400lm	4000K	80	REM-D	91mm	108mm	118mm
0688002C-830-30	wide flood 55°	12W	1450lm	3000K	80	REM-D	91mm	108mm	118mm
0688001C-830-30	wide flood 45°	12W	1450lm	3000K	80	REM-D	91mm	108mm	118mm
0688002C-840-30	wide flood 55°	12W	1550lm	4000K	80	REM-D	91mm	108mm	118mm
0688001C-840-30	wide flood 45°	12W	1550lm	4000K	80	REM-D	91mm	108mm	118mm
0688009C-30	wide flood 40°	12W		RGBW		REM-D	91mm	108mm	118mm
0688011C-830-30	very wide flood 80°	4W	250lm	3000K	80	REM-D	91mm	108mm	118mm
0688011C-840-30	very wide flood 80°	4W	225lm	4000K	80	REM-D	91mm	108mm	118mm
0688003C-830-30	very wide flood 80°	12W	1250lm	3000K	80	REM-D	91mm	108mm	118mm
0688003C-840-30	very wide flood 80°	12W	1350lm	4000K	80	REM-D	91mm	108mm	118mm
0688010C-830-30	elliptic 30°x50°	12W	1450lm	3000K	80	REM-D	91mm	108mm	118mm
0688004C-830-30	elliptic 50°x30°	12W	1450lm	3000K	80	REM-D	91mm	108mm	118mm
0688010C-840-30	elliptic 30°x50°	12W	1550lm	4000K	80	REM-D	91mm	108mm	118mm
0688004C-840-30	elliptic 50°x30°	12W	1550lm	4000K	80	REM-D	91mm	108mm	118mm
0688007C-30	elliptic 22°x46°	12W		RGBW		REM-D	91mm	108mm	118mm
0688005C-830-30	asymmetric Imax=20°	12W	1200lm	3000K	80	REM-D	91mm	108mm	118mm
0688005C-840-30	asymmetric Imax=20°	12W	1250lm	4000K	80	REM-D	91mm	108mm	118mm
